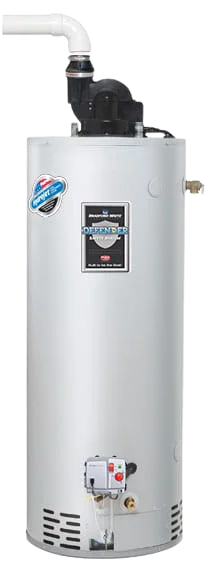

Bradford White Power Vent M-I-TW-50L6BN, 48Gal , 40,000 BTU

■ Power vented for positive exhaust during main burner operation—the TTW1 uses a specially designed assembly that blows exhaust gases directly out of the building, eliminating the need for conventional chimneys or expensive flue systems. ■ Optional Blower Orientation—blower/motor assembly can be rotated to allow for direct horizontal discharge of exhaust gases. ■ Electronic ignition system—electronic ignition eliminates the constant burning pilot used on other water heaters. This device results in savings of pilot gas during standby periods. (115V AC required to heater) Ignition system operates off of 24 volts. ■ 2″ PVC, ABS & CPVC (51 mm) vent—the water heater can be vented horizontally with 2″ PVC, ABS & CPVC (51mm) for lengths up to 30 feet (9m) with (3) 90° elbows. (45 equivalent feet) (13.5m). ■ 3″ PVC, ABS & CPVC (76 mm) vent—can be vented horizontally with 3″ PVC, ABS & CPVC (76mm) for lengths up to 90 feet (27.4m) with (3) 90° elbows. (105 equivalent feet) (32m). ■ Vertical venting through the roof—the water heater can be vented through the roof at a vertical height of 22 feet (6.7m) when using 2″ PVC, ABS & CPVC (51mm) and 40 feet (12m) when using 3″ PVC, ABS & CPVC (76mm). ■ Vitraglas® lining—Bradford White water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Bradford White high silica Vitraglas® lining provides a tough interior surface for our hot water tanks. ■ Protective magnesium rod—provides added protection against corrosion for long trouble-free service. ■ Factory installed Hydrojet® Total Performance System—cold inlet sediment reducing device. Helps prevent sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up at top of tank. ■ Heat Traps—factory installed, minimizes heat loss through piping. ■ Water Connections—3/4″NPT factory installed true dielectric fittings. Extends water heater life and eases installation. ■ 1″ Non-CFC foam insulation—covers the sides and top of tank to save energy by retarding loss of heat. Also increases jacket rigidity. ■ Fully automatic controls—fast acting surface-mount thermostat for automatic temperature control. Built-in energy cut-off switch prevents abnormally high water temperature for extra safety. Combination gas valve has built-in gas pressure regulation and operates off of a 24 volt circuit. ■ Brass drain valve ■ T&P relief valve included ■ Flue baffle—designed to maximize the amount of heat absorbed in the lower portion of tank. Reduces air movement in the water heater during standby periods to retard heat loss up the flue. ■ Six or ten year limited warranty on steel tank—heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining. ■ Six year limited warranty on parts
